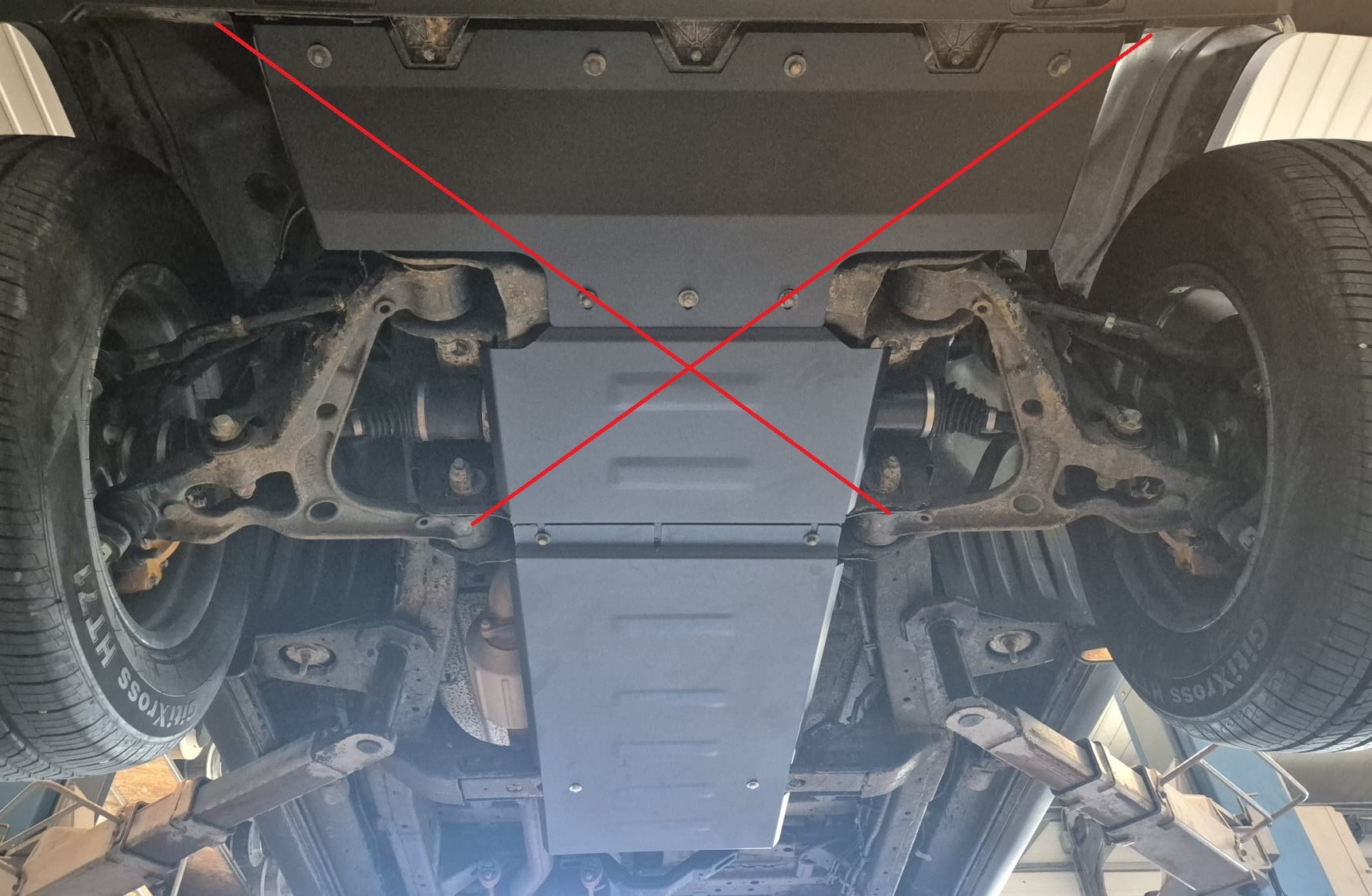

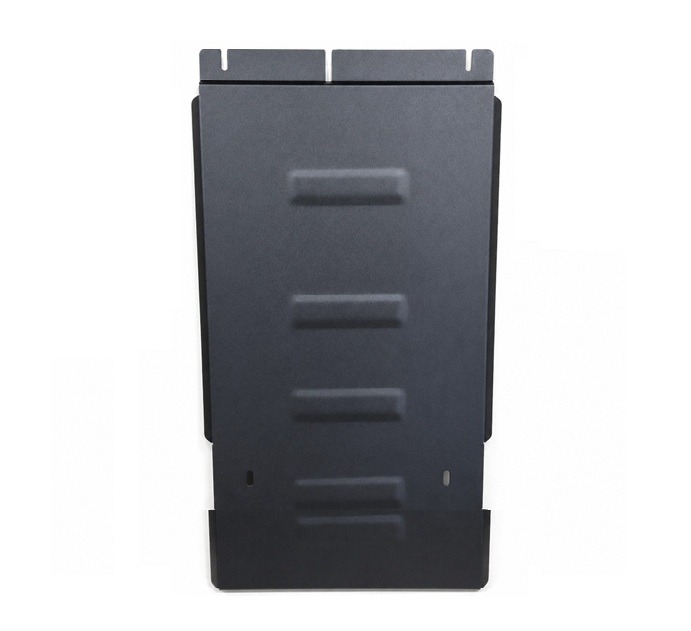

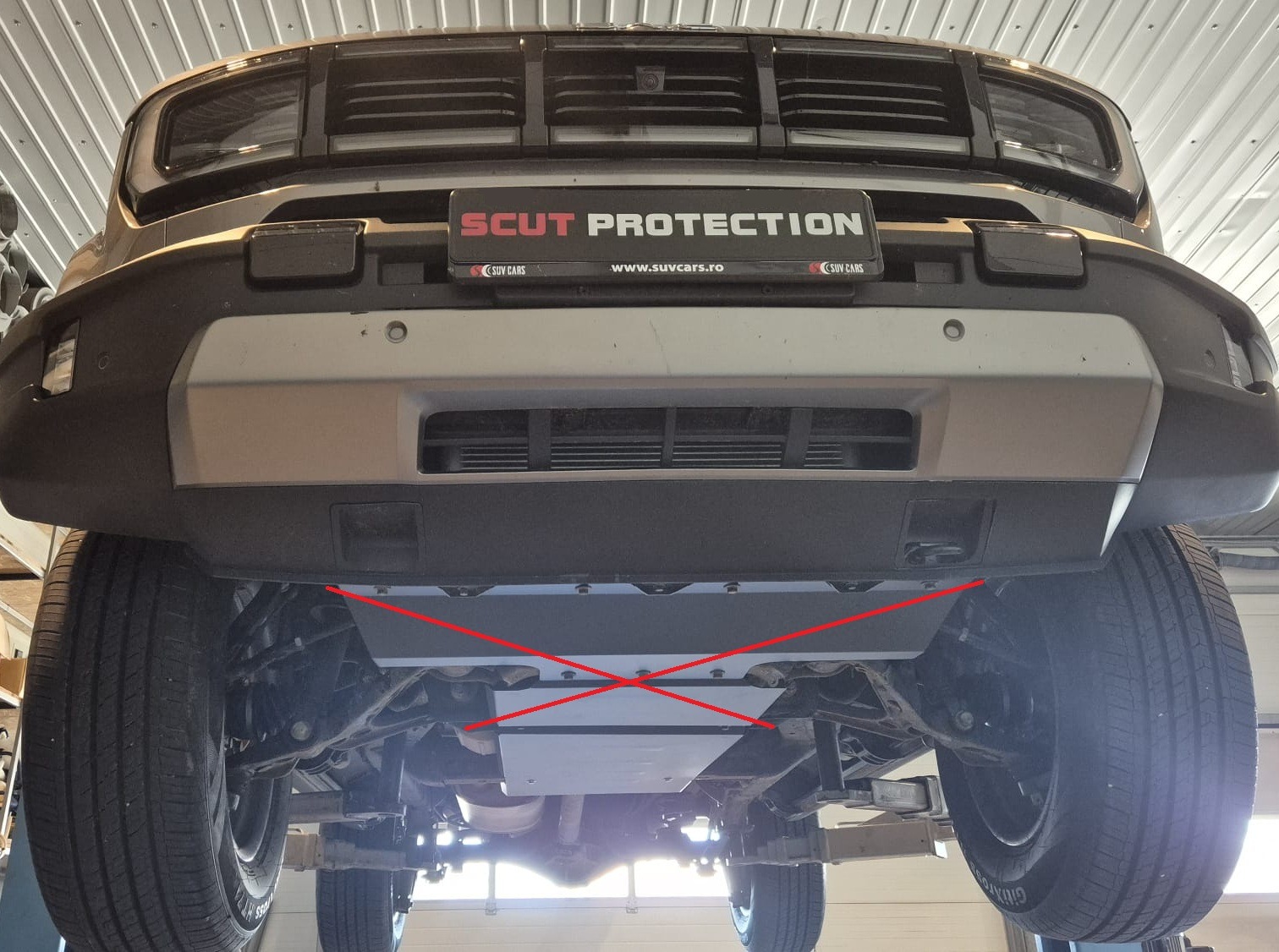

Steel underbody protection for Baic Beijing BJ40 (2023-2026), made from 2.5 mm steel and designed to protect the gearbox area. This skid plate is intended for the listed vehicle application and helps shield vulnerable lower components from everyday road exposure.
For the Baic Beijing BJ40, this type of protection is useful in driving conditions where rough roads, loose debris, winter slush, potholes, and uneven surfaces can affect exposed underside components. Coverage includes the gearbox, adding a durable protective barrier underneath the vehicle.
This version is listed for model years 2023-2026 and is specified for all engine variants. Product weight is 11 kg. Oil sump opening: No.
Please check the VIN, model year, engine, drivetrain, body version, and underbody layout before ordering. EU delivery, 60-day returns, and a 24-month warranty are included.
Fitment and vehicle context
This skid plate is listed for Baic Beijing BJ40 (2023-2026) and should be matched to the exact vehicle configuration before purchase. Although this version is specified for all engine variants, compatibility should still be confirmed carefully, especially where drivetrain, body version, production-year differences, or underbody layout may affect the mounting points.
Main Features
- Protects: Gearbox
- Material: Steel
- Thickness: 2.5 mm
- Weight: 11 kg
- Model years: 2023-2026
- Engine compatibility: All engine variants
- Oil sump opening: No
- SKU: 5941986219749
Mounting and service notes

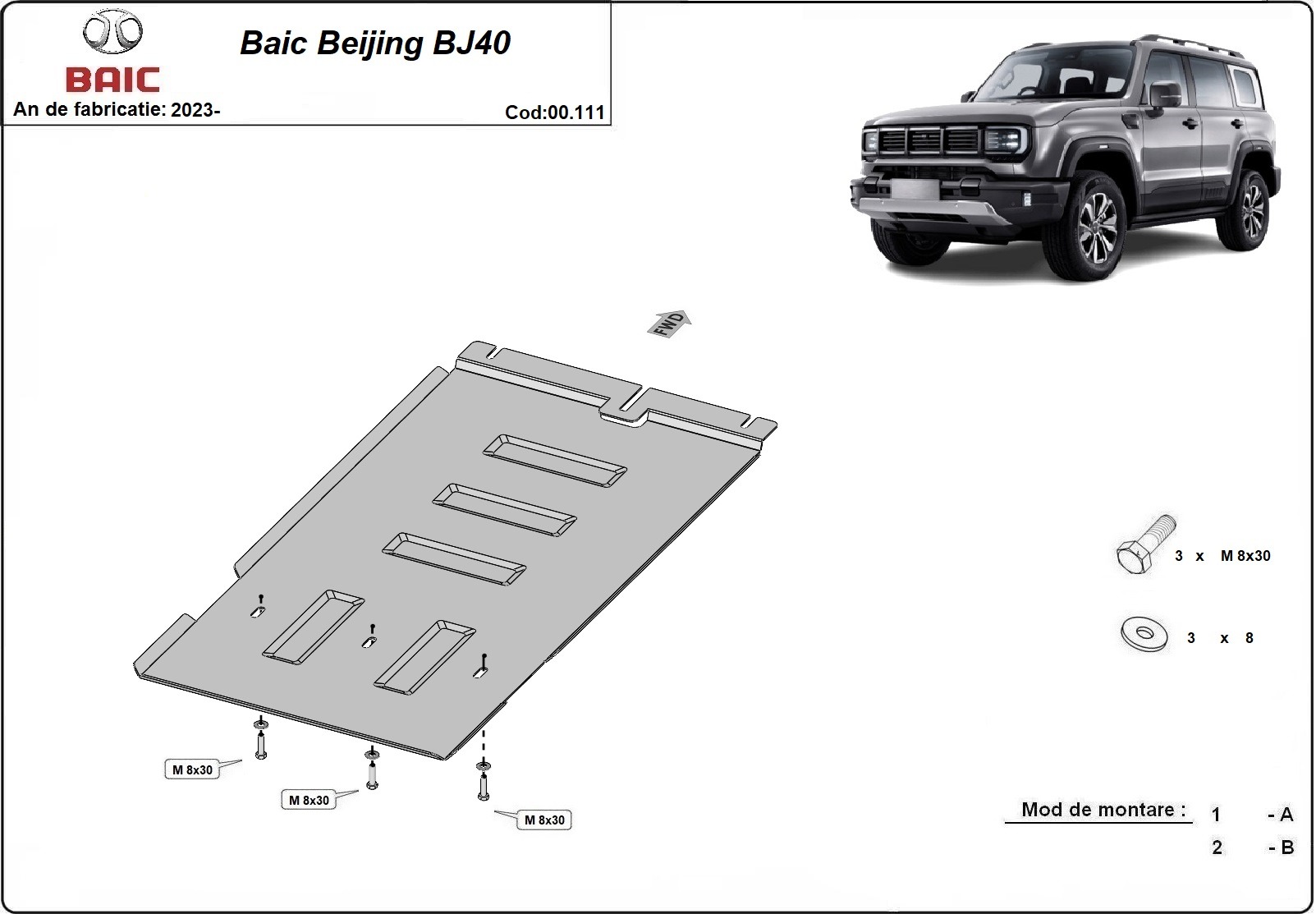

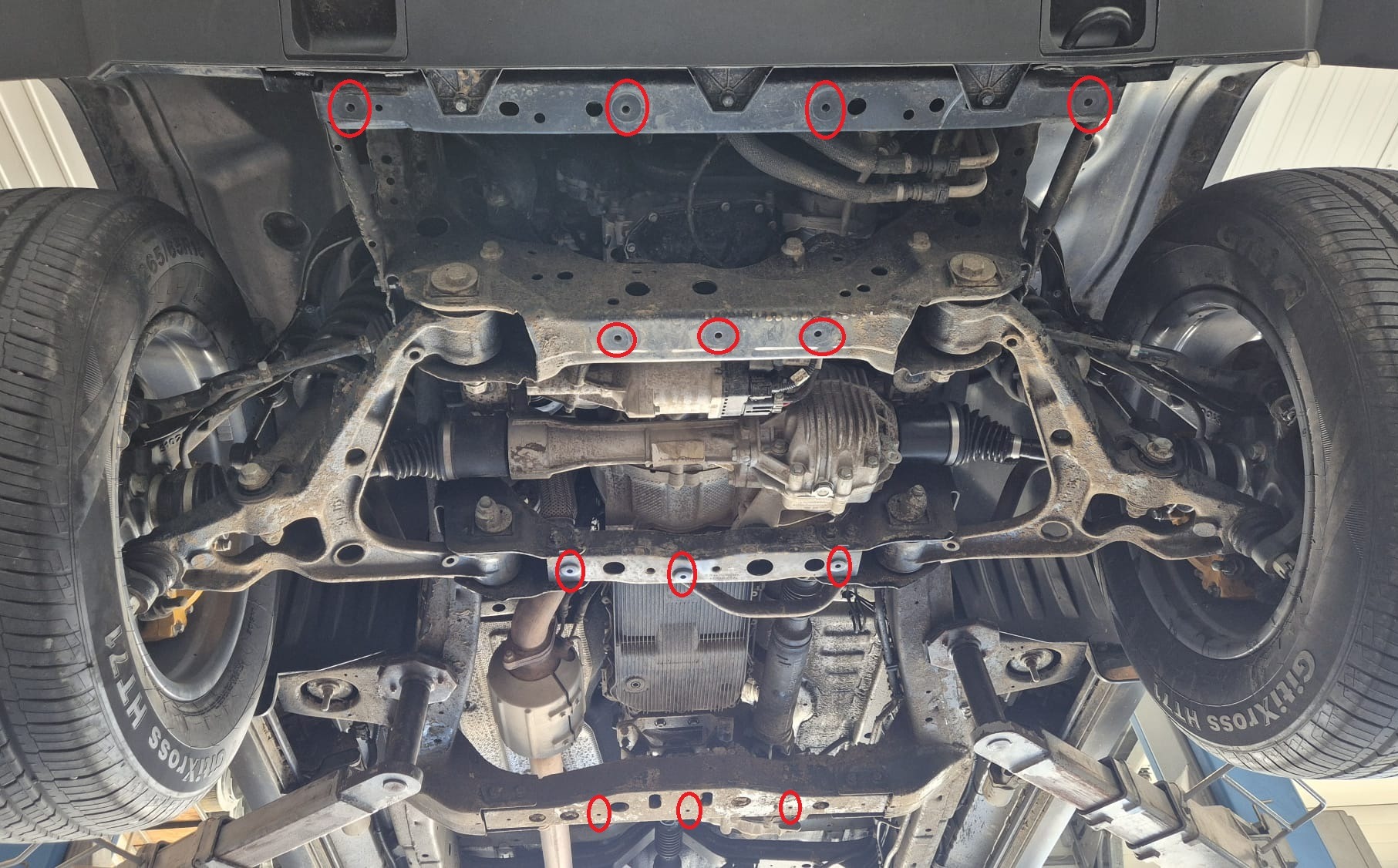

Installation should be checked against the product fitment data and the vehicle before fitting. Use the specified existing mounting points for the listed application and verify service access requirements in advance. No drilling is required.
Steel vs. Aluminium
Steel underbody protection is typically chosen when impact resistance and durability are the main priorities. Compared with aluminium protection, steel is usually heavier, but it is well suited to drivers who want stronger protection for everyday use and rougher road conditions.
FAQ
Which part of the vehicle does this skid plate protect?
This version is designed to protect the gearbox.
Is it compatible with my vehicle?
This product is listed for Baic Beijing BJ40 (2023-2026) and is specified for all engine variants. Always check the VIN, model year, engine, drivetrain, body version, underbody layout, and vehicle documents before ordering.
Does it have an oil sump opening?
No. This version does not include an oil sump opening.
What should I know before installation?
This skid plate is supplied with all required mounting hardware and an installation manual. It uses the vehicle’s existing mounting points and does not require drilling. Installation can be carried out by an experienced vehicle owner or a professional workshop.
Returns and warranty
If you are not satisfied with the product, it may be returned within 60 days after receipt. A 24-month warranty is included. The kit includes all required mounting hardware and an installation manual.
