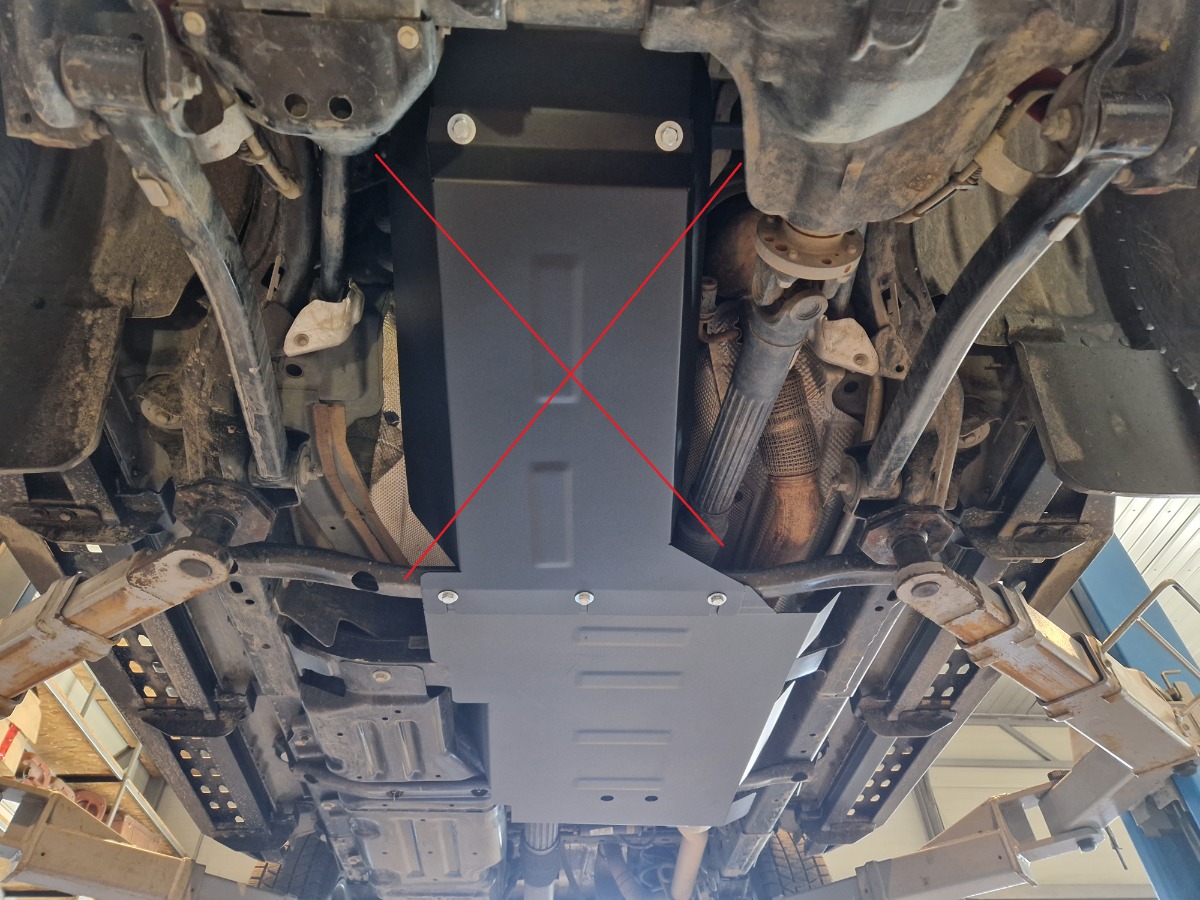

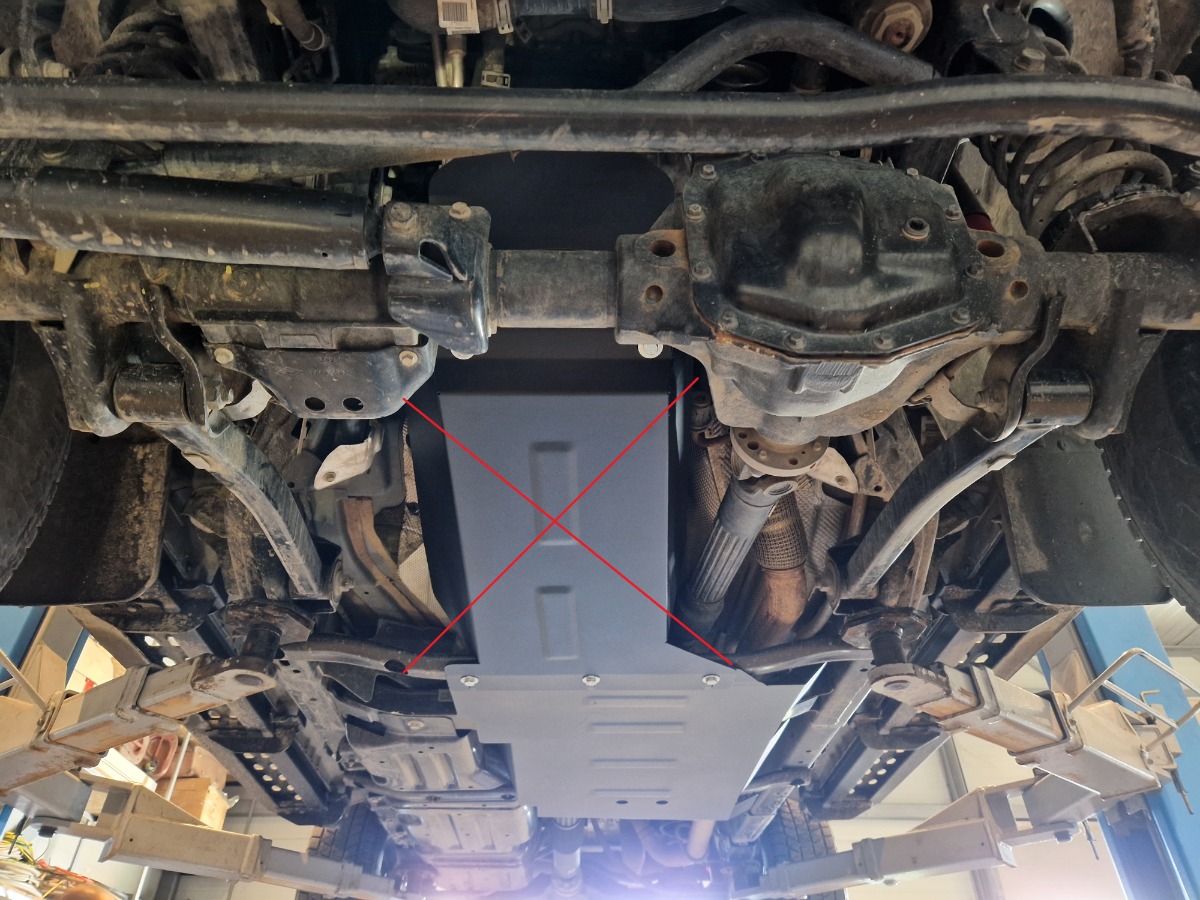

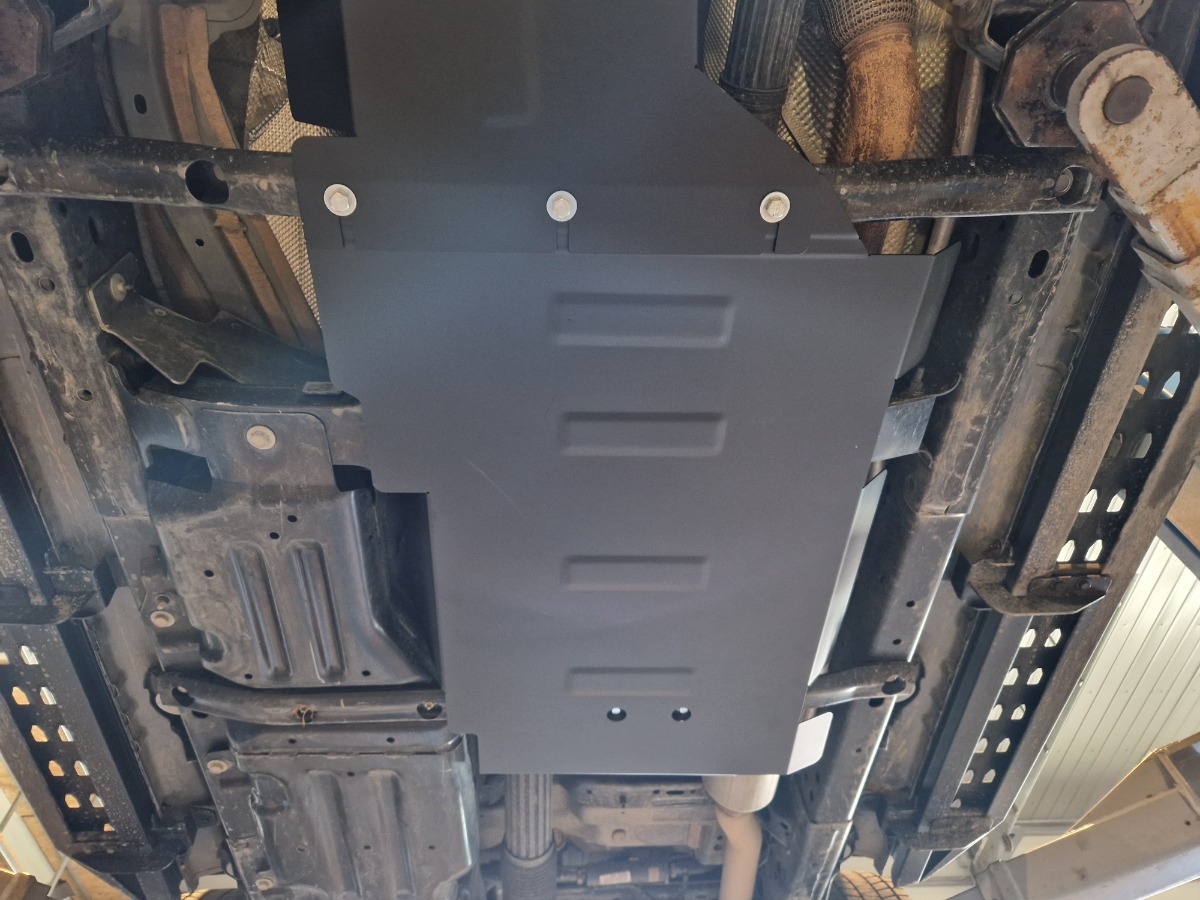

Steel underbody protection for Jeep Wrangler JL (2017-2026), made from 2 mm steel and designed to protect the gearbox or transmission area. This vehicle-specific skid plate helps shield the vulnerable central underbody zone from everyday road exposure and light off-road impacts.
For the Jeep Wrangler JL, gearbox protection is particularly useful when crossing ridges, deep ruts, rocky tracks, raised trail centres, and uneven surfaces. After the front wheels pass over an obstacle, the central underside can become the next point of contact. This plate creates a durable barrier beneath the gearbox area.
This version is listed for model years 2017-2026 and is specified for all engine variants. Product weight is 13 kg.
Important: the compatible Jeep Wrangler JL engine skid plate is required for installation of this gearbox plate. Do not order this product as an independent guard unless the required compatible engine plate is already installed.
Please check the VIN, production date, model year, engine, transmission, drivetrain, body configuration, existing factory protection, and underbody layout before ordering. A 60-day return period and a 24-month warranty are included. Delivery terms and charges depend on the destination.
Fitment and vehicle context
This skid plate is listed for Jeep Wrangler JL (2017-2026) and should be matched to the exact vehicle configuration before purchase. Production date, registration year, and model year may differ around the beginning of the JL generation, so vehicles from the earliest part of the listed range require particular attention.
Compatibility may also be affected by the two-door or four-door body configuration, engine, transmission, drivetrain, trim-specific factory protection, aftermarket bumpers, suspension modifications, exhaust changes, or previous underbody damage. Wrangler 4xe compatibility should not be assumed solely from the JL designation or the “all engine variants” listing.
Not sure which protection area to install first? Read our Jeep Wrangler JL engine and transmission skid-plate guide to understand the available protection zones and required installation order.
Main Features
- Protects: Gearbox / Transmission
- Material: Steel
- Thickness: 2 mm
- Weight: 13 kg
- Model years: 2017-2026
- Engine compatibility: All engine variants
- Installation requirement: Compatible engine skid plate
- SKU: 5941986203885
Mounting and service notes
This gearbox skid plate requires the compatible Jeep Wrangler JL engine skid plate for installation. The engine plate should be installed first, followed by the gearbox plate using the mounting sequence and hardware specified in the supplied instructions.
Installation should be checked against the product fitment data and the actual vehicle before fitting. Verify clearance around the gearbox, exhaust, drivetrain, moving components, drainage points, and service-access areas.
Review transmission and other service-access requirements before installation. Depending on the vehicle and workshop procedure, the plate may need to be removed or partially lowered during maintenance.
Steel vs. Aluminium
Steel underbody protection is typically chosen when stiffness, impact resistance, and durability are the main priorities. This 2 mm steel gearbox plate is well suited to vehicles used on damaged roads, gravel routes, rocky trails, and uneven off-road surfaces.
Steel is generally heavier than an otherwise comparable aluminium design and requires periodic inspection of its protective coating. Material thickness should not be considered independently from plate shape, reinforcement, coverage, and mounting design.
FAQ
Which parts of the vehicle does this skid plate protect?
This version is designed specifically to protect the gearbox or transmission area.
Can this gearbox skid plate be installed by itself?
No. The compatible Jeep Wrangler JL engine skid plate is required for installation. The engine plate forms the first part of the protection system and provides the necessary installation foundation for this gearbox plate.
Does “gearbox skid plate” mean transmission skid plate?
Yes. “Gearbox” is the term used in the product catalogue, while “transmission skid plate” is more commonly used in the United States. Both terms refer to the protected central drivetrain zone covered by this product.
Does this plate protect the engine?
No. This product protects the gearbox or transmission area. Engine protection is provided by the separate compatible engine skid plate, which is also required for installation of this product.
Is it compatible with my vehicle?
This product is listed for Jeep Wrangler JL (2017-2026) and is specified for all engine variants. Always check the VIN, production date, model year, engine, transmission, drivetrain, body configuration, existing factory protection, underbody layout, mounting points, and vehicle documents before ordering.
If compatibility is uncertain, use the UnderbodyGuards VIN compatibility check before purchase.
Is it automatically compatible with Jeep Wrangler 4xe?
No automatic assumption should be made. The 4xe has a different powertrain and underbody component layout. Compatibility with both the engine and gearbox plates must be confirmed using the VIN and actual mounting points.
What should I know before installation?

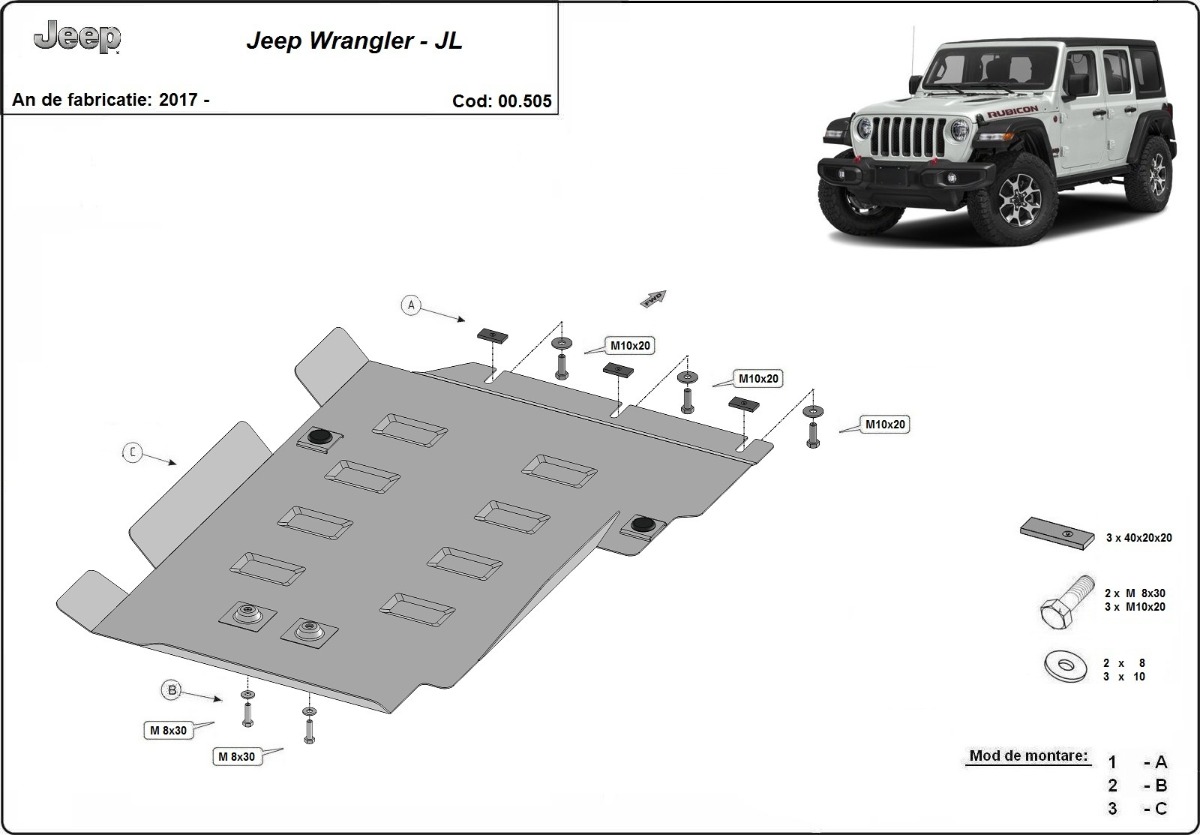

This protection plate is supplied with the required mounting hardware and a detailed installation guide showing the mounting points and fastening sequence. Install the compatible engine plate first and then fit the gearbox plate according to the supplied instructions. Installation can be carried out by an experienced owner with the required tools or by a professional workshop.
Returns and warranty
If you are not satisfied with the product, it may be returned within 60 days, subject to the applicable return conditions. A 24-month warranty is included. The kit includes the required mounting hardware.
