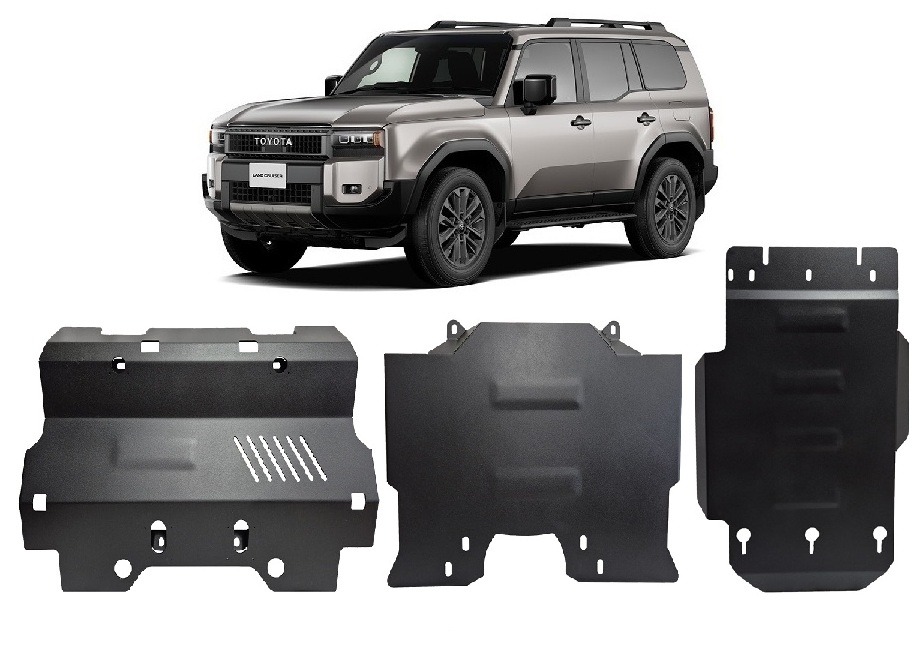

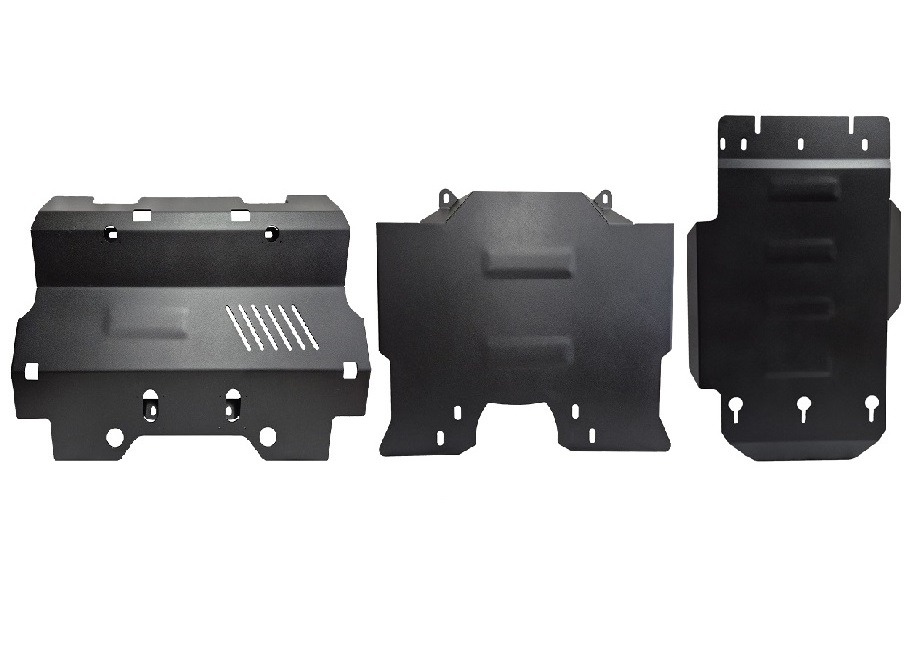

Complete 3 mm steel underbody protection set for the Toyota Land Cruiser 250 (LC250), model years 2024–2026. Also known in some markets as the Toyota Land Cruiser Prado 250, this multi-piece skid plate system protects the engine, gearbox, radiator and transfer case areas.
The set provides broad protection across the front and central underside of the vehicle. It is intended for LC250 owners who regularly drive on rocky tracks, forestry and agricultural roads, construction-site access routes, deep ruts, damaged surfaces or snow-covered roads where hidden obstacles may strike exposed underbody components.
Unlike an engine-only skid plate, this complete system extends protection towards the centre of the drivetrain. This is especially important when the front axle has already crossed an obstacle but the gearbox or transfer case remains exposed to a rock, ridge or raised section between the wheel tracks.

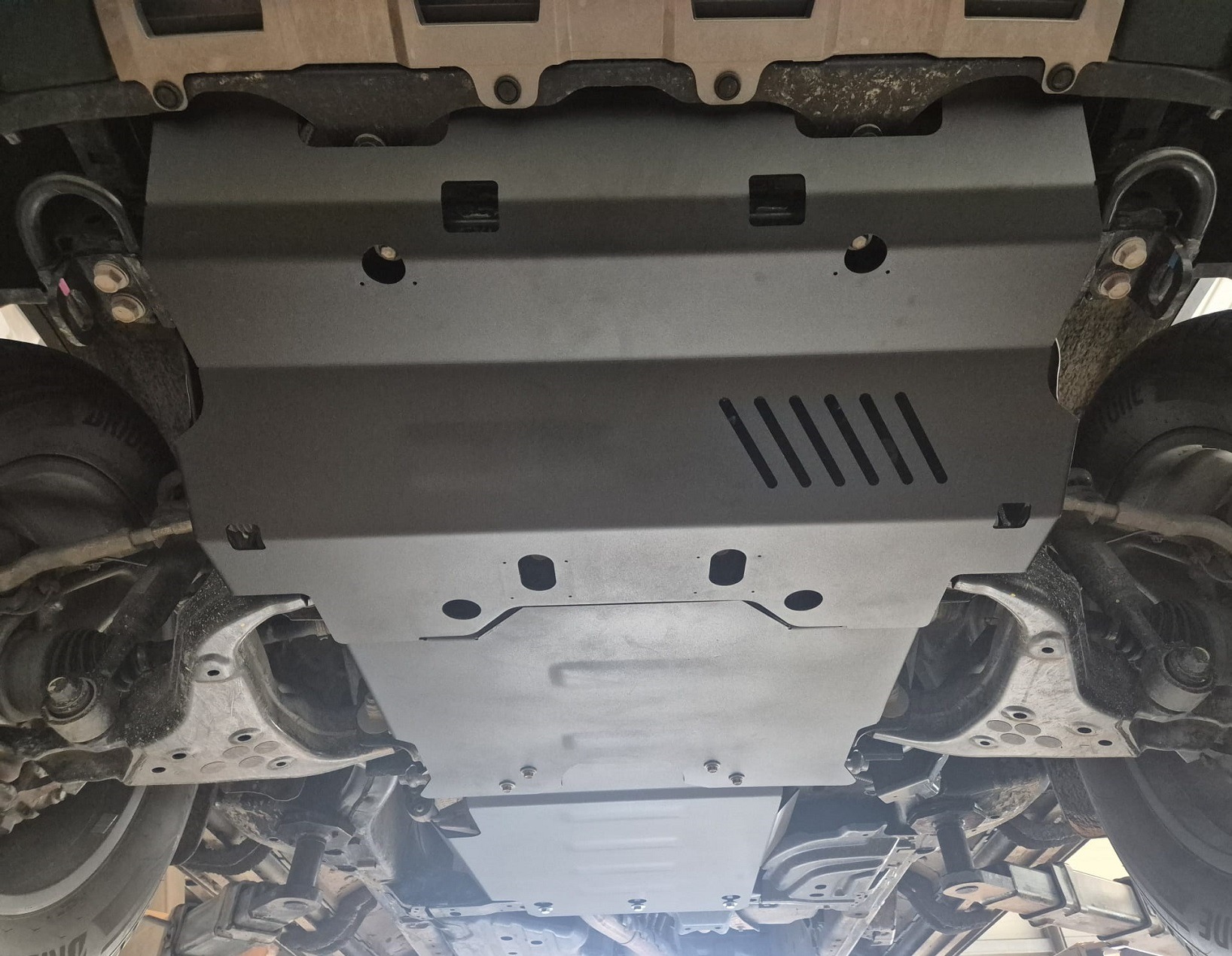

Complete LC250 Underbody Protection
- Radiator: Helps protect the lower cooling area from stones, branches, compacted snow and frontal contact with uneven terrain.

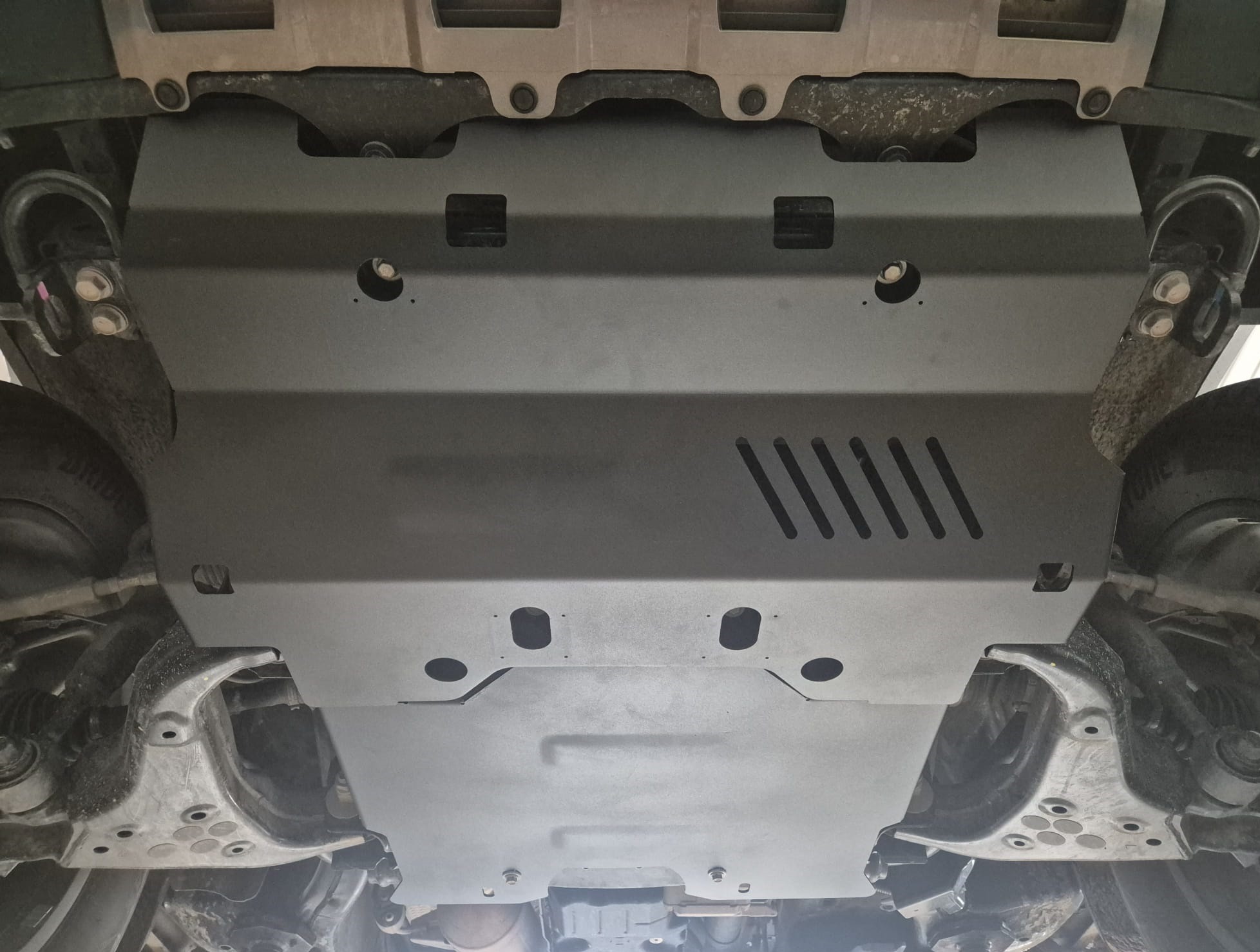

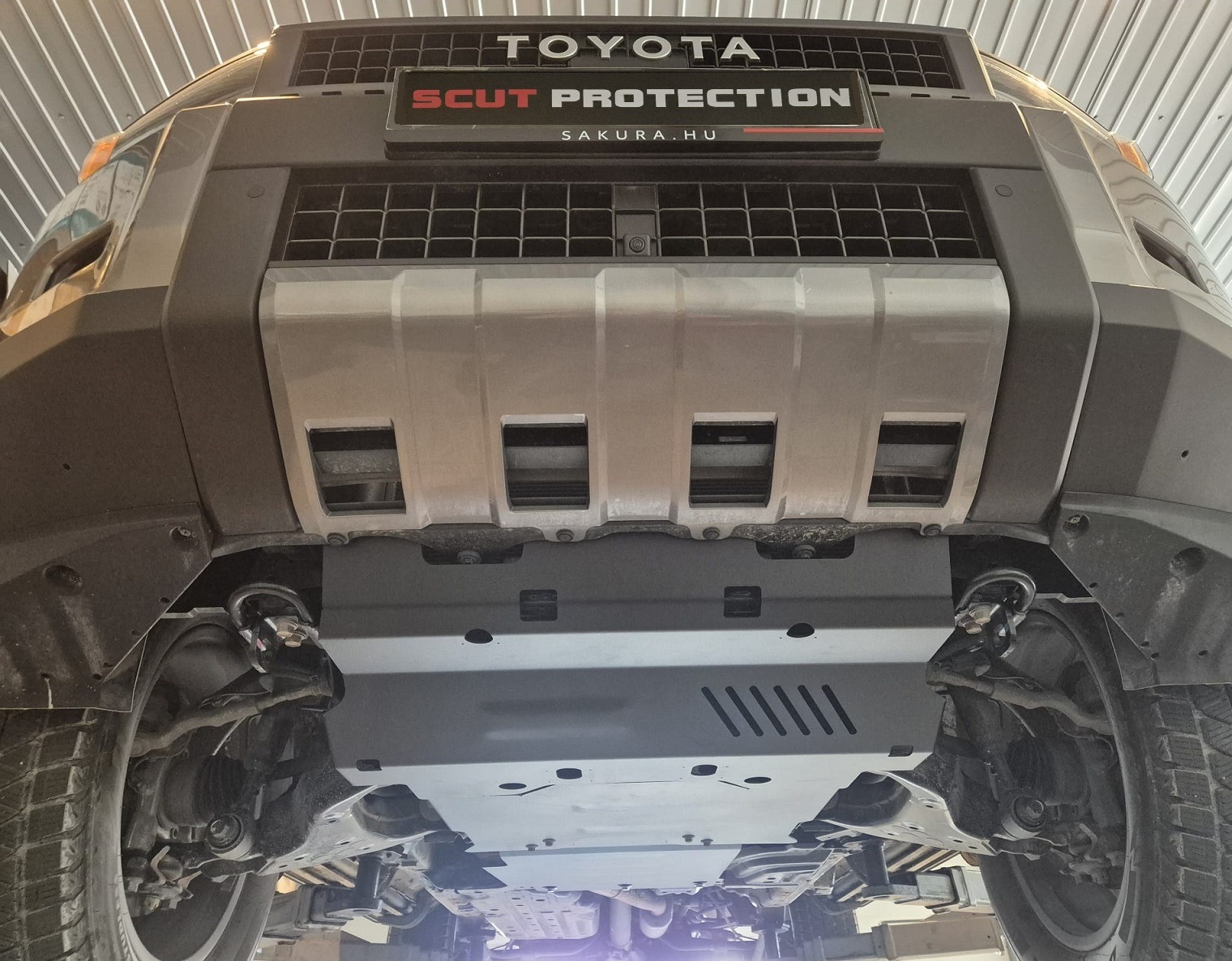

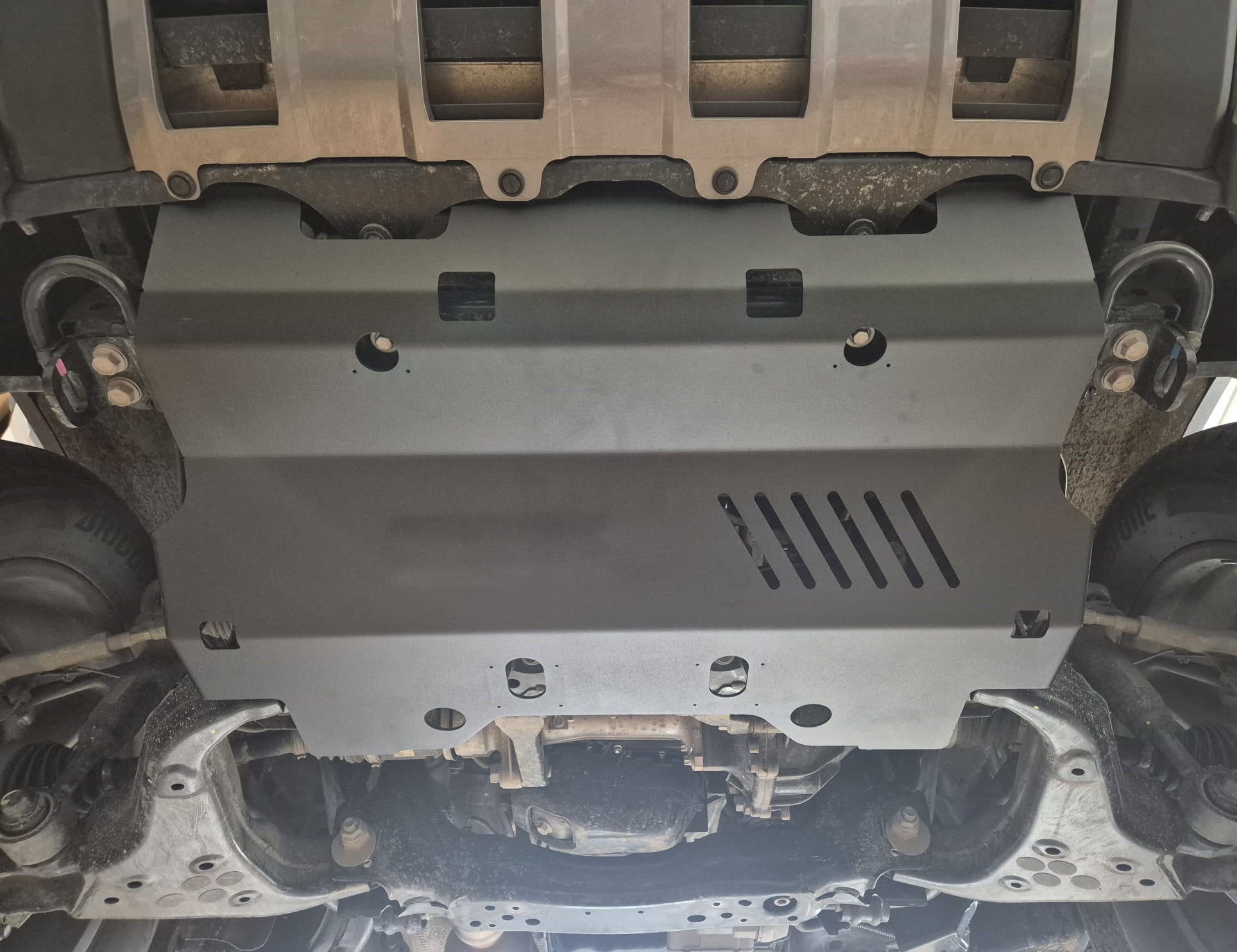

- Engine: Creates a strong barrier beneath the engine and sump area against direct underbody impacts.
- Gearbox: Reduces direct exposure of the transmission area when crossing rocks, deep ruts and raised centre sections.

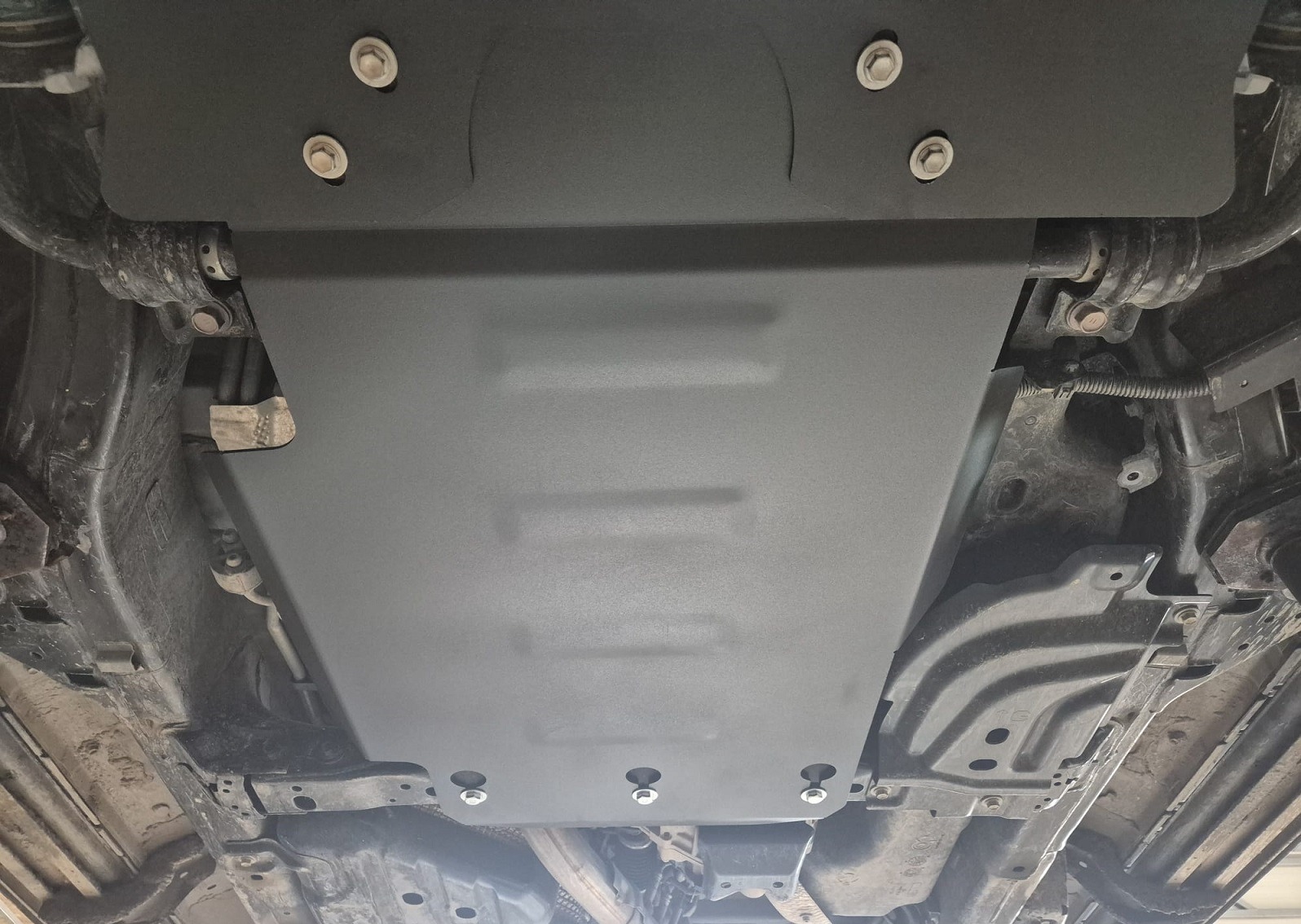

- Transfer case: Helps shield a critical component of the four-wheel-drive system from direct contact and impact.
Main Features
- Product type: Complete multi-piece underbody skid plate set
- Vehicle: Toyota Land Cruiser 250 / LC250
- Alternative model name: Toyota Land Cruiser Prado 250 in selected markets
- Model years: 2024–2026
- Protects: Engine, Gearbox, Radiator and Transfer case
- Material: Steel
- Thickness: 3 mm
- Engine compatibility: Listed for all engine variants
- Oil sump opening: No

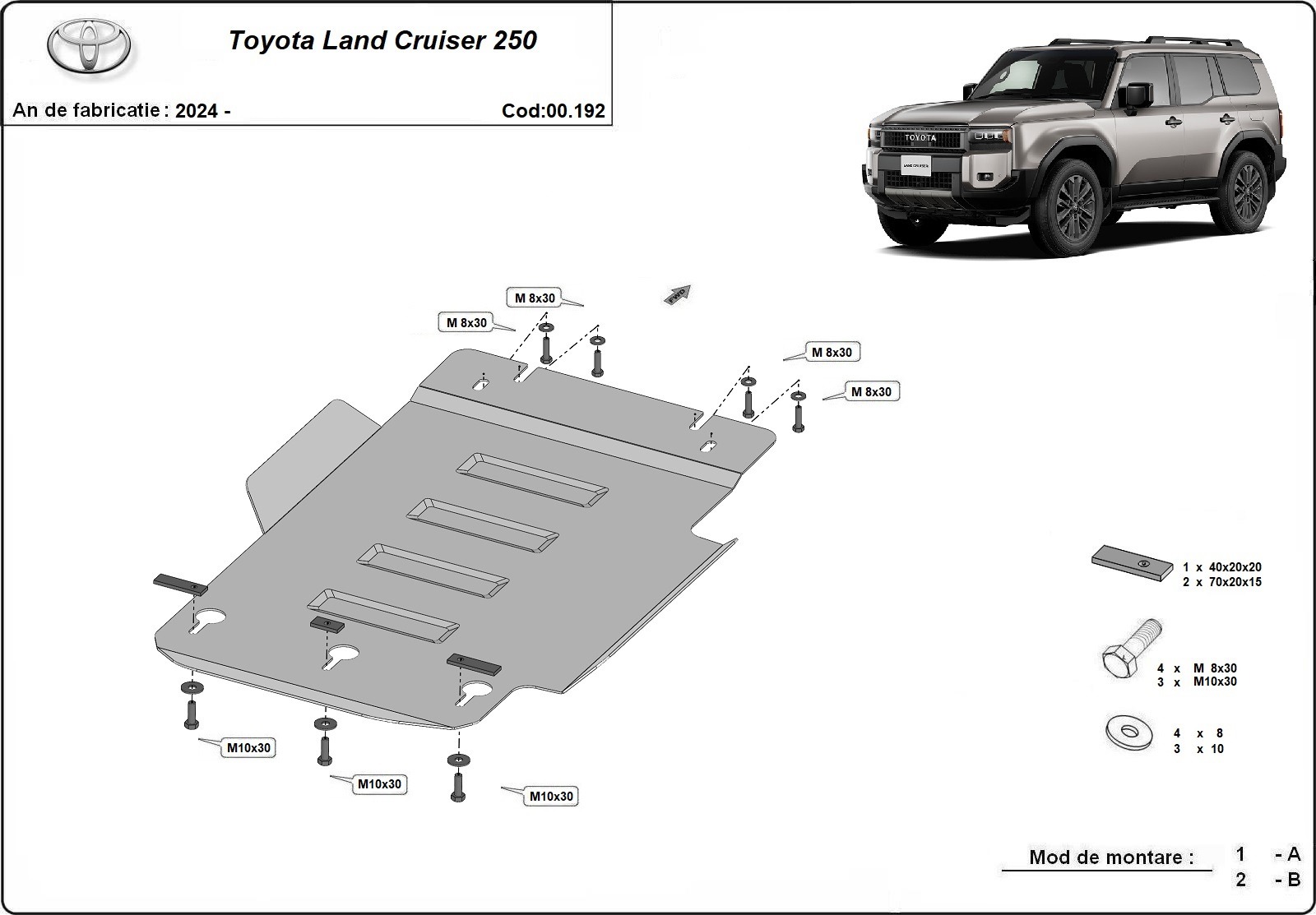

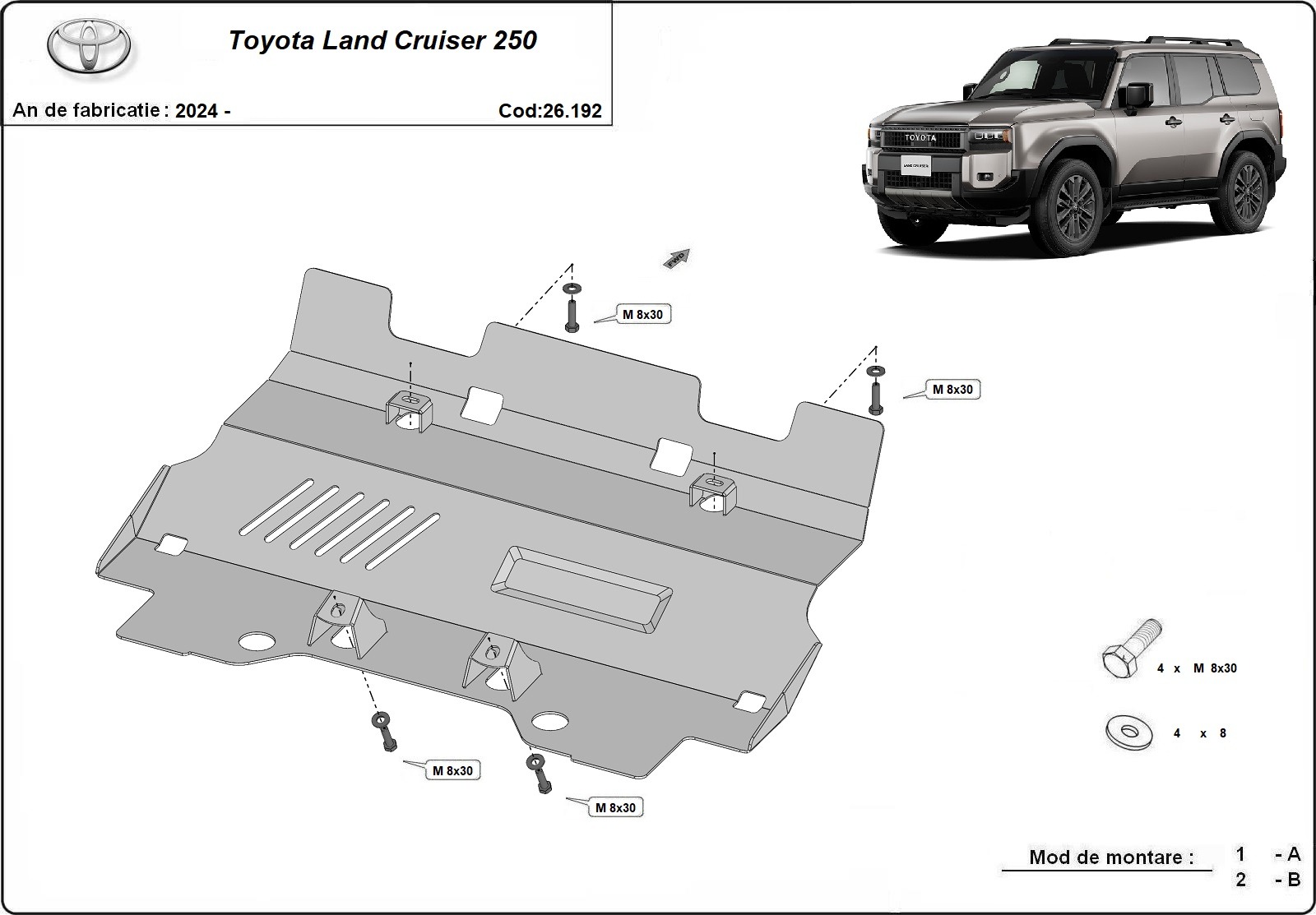

- Kit contents: Skid plates, mounting hardware and installation manual
- SKU: 5941986219268
Fitment and Vehicle Compatibility
This underbody protection set is listed for the Toyota Land Cruiser 250 manufactured from 2024 to 2026. Regional versions of the LC250 may use different engines, transmissions, exhaust systems, emissions equipment or factory-fitted underbody components.
Before ordering, confirm the complete VIN, model year, engine, transmission and drivetrain. Vehicles with suspension changes, aftermarket exhaust components or other modifications should also be checked carefully to ensure that the existing equipment does not interfere with the mounting points or protected areas.
Installation and Service Notes

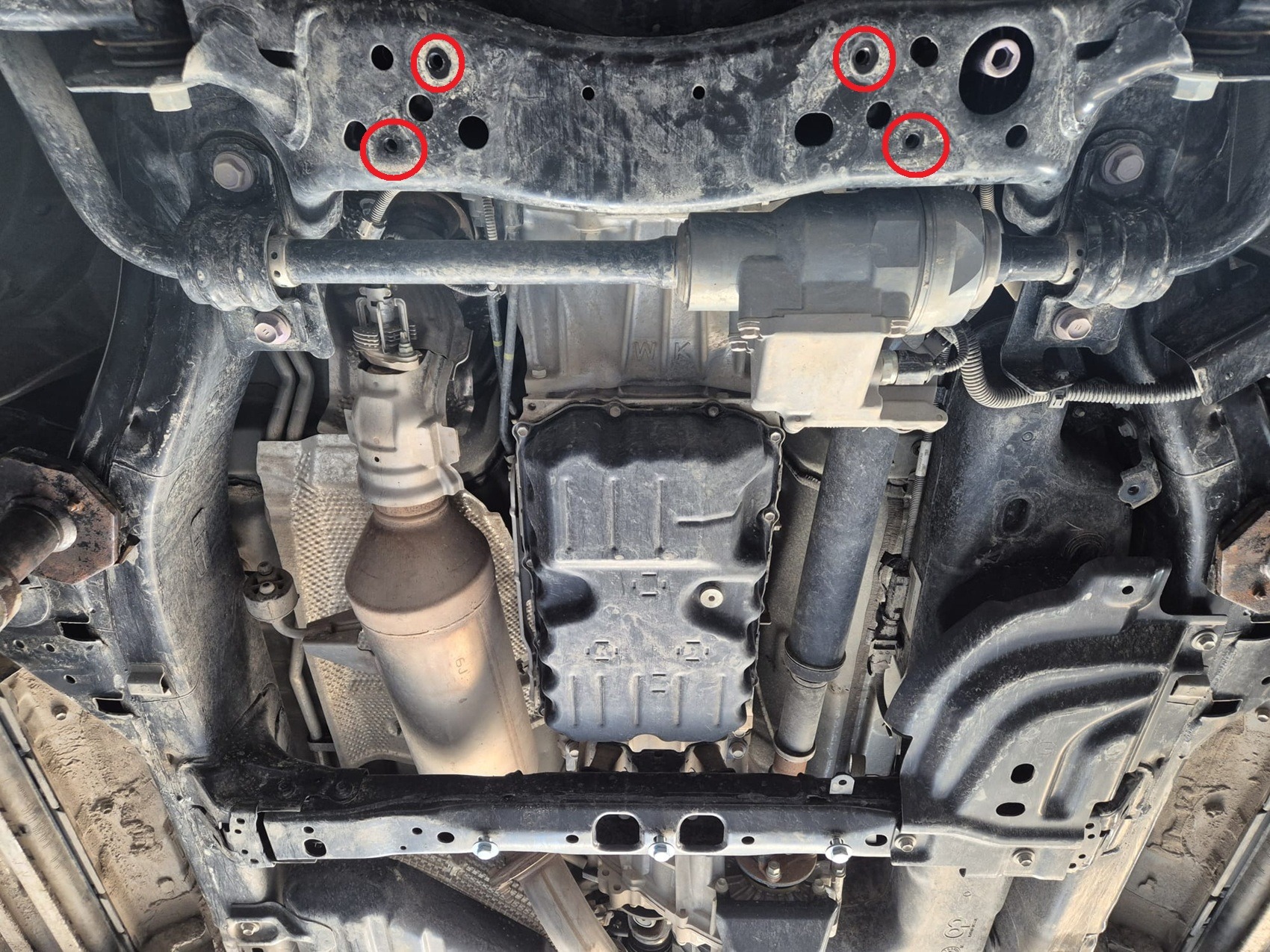

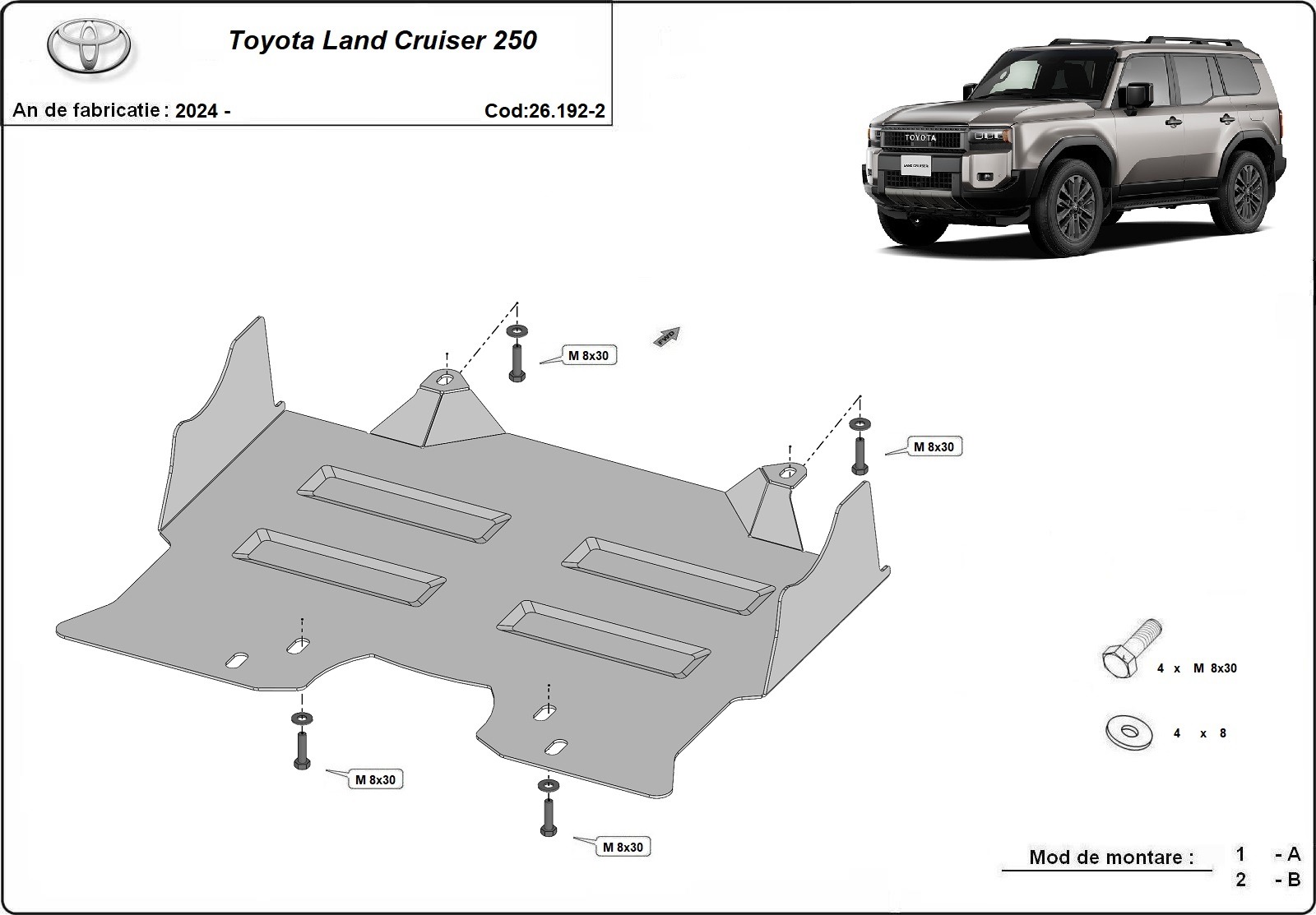

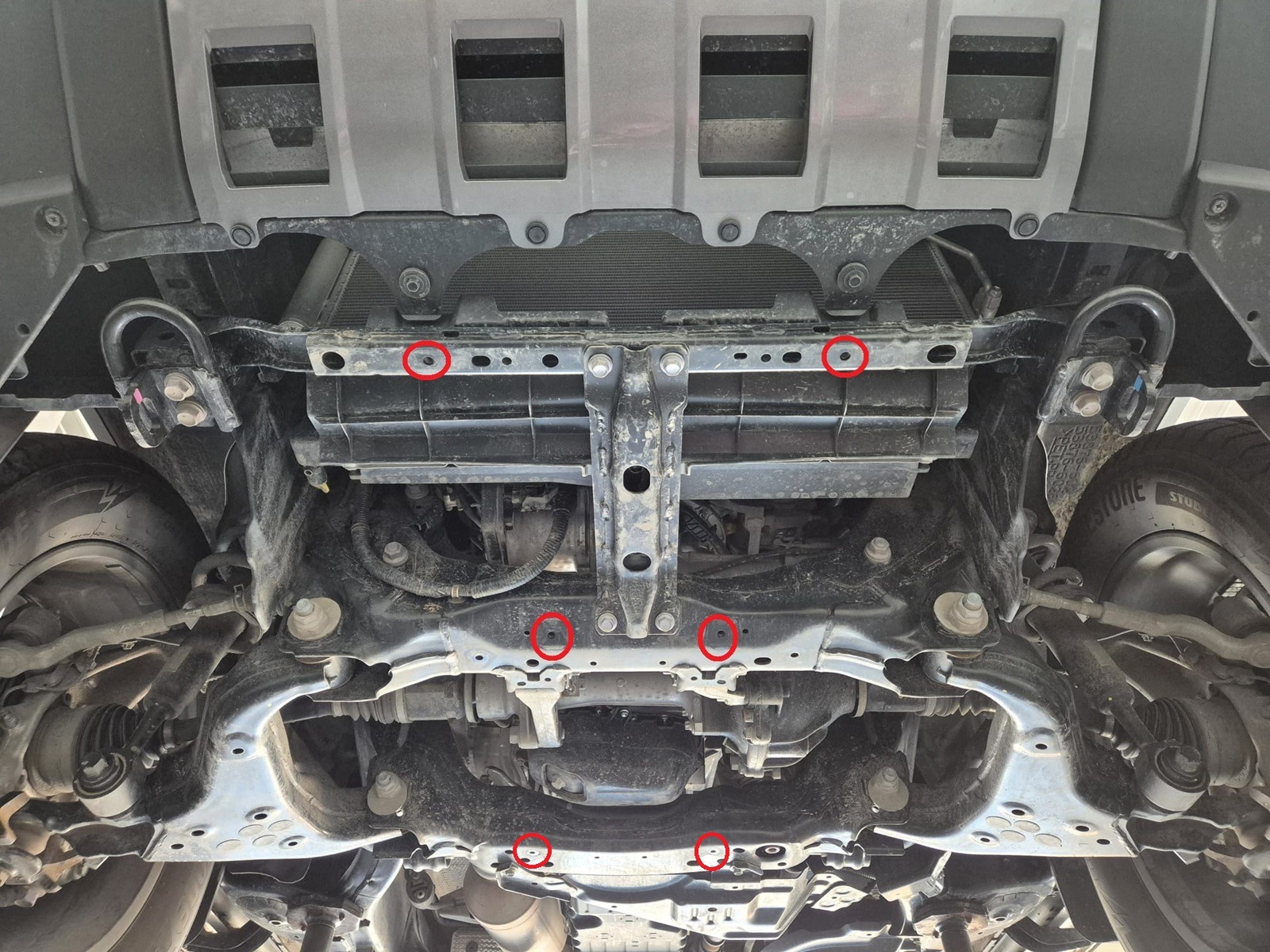

The protection set is supplied with the required mounting hardware and an installation manual. It is designed to use the vehicle’s existing mounting points, without drilling or structural modification for the listed application.
Professional installation is recommended if the vehicle owner does not have the necessary tools or experience. Before fitting, compare the supplied components with the installation manual and verify clearance around the exhaust, cooling system and moving drivetrain parts.
This version does not include an oil sump service opening. Check the workshop’s service procedure in advance, as removal of the relevant protection section may be required for certain maintenance operations.
Why Choose 3 mm Steel?
Steel underbody protection is commonly selected when resistance to repeated hard impacts is the main priority. The 3 mm steel construction is well suited to heavy SUVs used on rocky trails, deeply rutted roads, forestry routes, agricultural land and construction sites.
Compared with aluminium, steel is generally heavier but provides greater resistance to frequent concentrated impacts under comparable designs. This makes it particularly suitable for LC250 vehicles used regularly in demanding off-road or working conditions.
For mixed road, winter, gravel and moderate off-road driving, a 4 mm aluminium set may provide a better balance of protection, lower added weight and corrosion resistance. Material thickness should not be considered alone: plate geometry, reinforcement, mounting design and actual coverage are also important.
Maintenance and Inspection
After winter or off-road driving, remove accumulated mud, stones, packed snow and road salt. Inspect the skid plates, mounting brackets and fasteners for deformation, looseness or damage to the protective finish.
The complete system should also be inspected after any significant impact. Damaged areas should be cleaned and treated as required to maintain corrosion protection, and all fasteners should be checked according to the installation instructions.
Not sure which material is right for your vehicle? Read our Toyota Land Cruiser 250 steel vs aluminium skid plate comparison.
FAQ
What does this Toyota Land Cruiser 250 skid plate set protect?
It protects the engine, gearbox, radiator and transfer case areas across the front and central underside of the LC250.
Is this one skid plate or a complete protection set?
This is a multi-piece complete underbody protection set covering several separate areas beneath the vehicle.
Is the set compatible with every LC250 engine?
The product is listed for all engine variants for model years 2024–2026. However, regional vehicle configurations can differ, so the VIN, engine, transmission and drivetrain should always be confirmed before ordering.
Does installation require drilling?
No drilling is required for the listed vehicle application. The set is designed to use existing mounting points and is supplied with mounting hardware and installation instructions.
Does the set have an oil sump opening?
No. This version does not include an oil sump opening. Removal of the relevant protection section may be necessary for certain service operations.
Is 3 mm steel suitable for demanding off-road use?
Yes. This steel protection system is intended for conditions where resistance to repeated impacts from rocks, deep ruts and hard terrain is a priority. The vehicle should still be driven according to the terrain and inspected after significant contact.
Steel or aluminium: which is better for the LC250?
Choose steel for frequent rocky-terrain use, demanding off-road driving and work routes where strong impact resistance is the priority. Choose aluminium when lower added weight and corrosion resistance are more important for mixed road, winter, gravel and moderate off-road use.
What warranty and return period are included?
The product includes a 24-month warranty and may be returned within 60 days in accordance with the applicable return policy.
